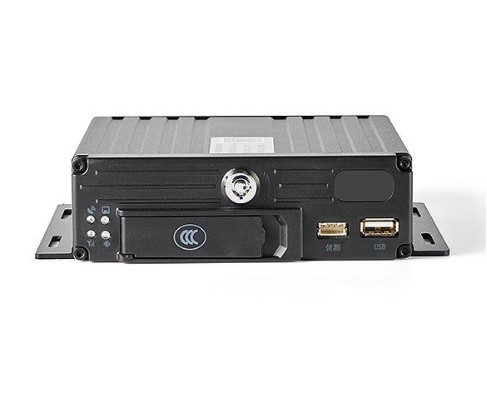

AI MDVR KM-DB02 Technical Specifications

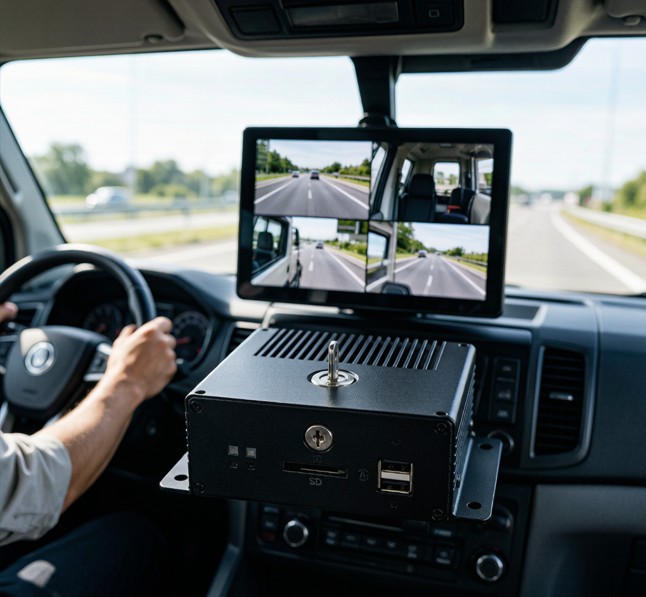

4-Channel 1080P Recording & Dual SD Storage

Simultaneous 4-channel recording at 1080P or 720P with H.264/H.265 encoding. 5-channel audio input covers AV3, AV4, MIC, ADAS, and DMS sources, with 8Ω/2W speaker output. Dual SD card slots support 32GB to 512GB each (Class 10 or above) for extended loop recording. Live streaming and cloud playback eliminate physical media retrieval.

ADAS — External Threat Detection

ADAS delivers in-cab alerts for forward collision risk (FCW), unsafe headway distance (HMW), unintended lane departure (LDW), and pedestrian proximity (PCW) — the four most common fleet collision precursors. AI-driven detection identifies danger at the moment of risk and issues voice warnings to correct driver behavior before impact.

DMS — In-Cabin Driver Monitoring

AI-powered monitoring detects eight behaviors: tired driving (eye closure and yawning), phone calls, smoking, distracted driving, missing seat belt, infrared blocking/sunglasses, camera obstruction, and no-driver scenarios. Covers root causes of fleet collisions — fatigue, inattention, and impairment — with immediate corrective alerts.

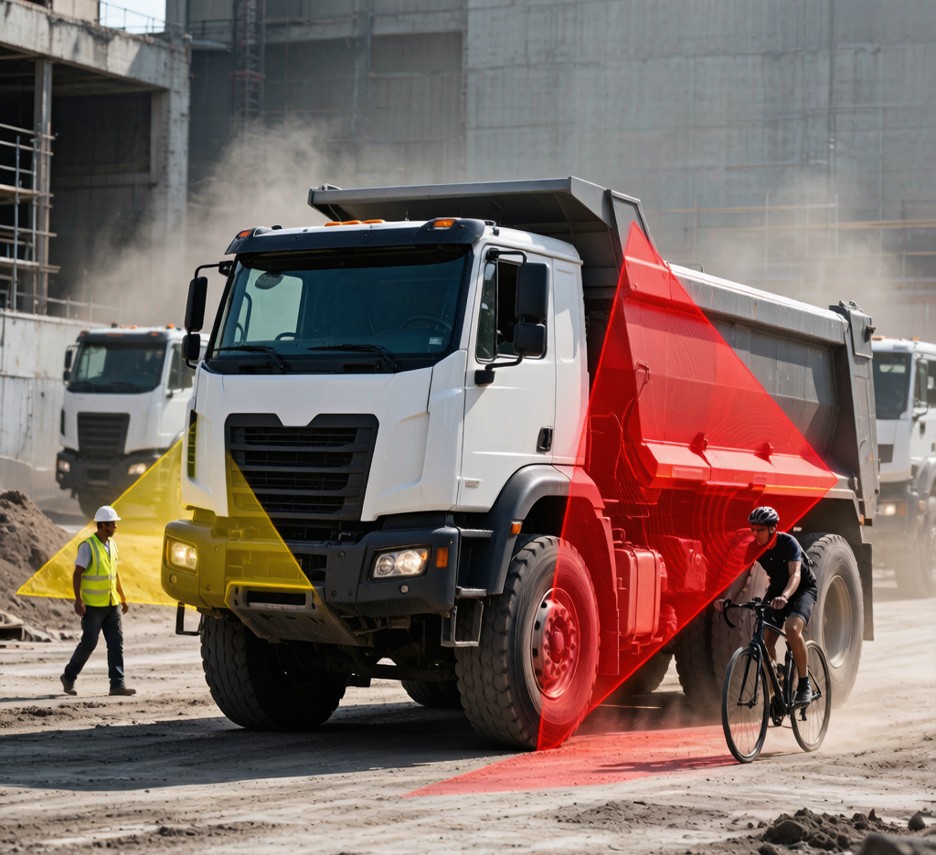

BSD — Multi-Angle Blind-Spot Detection

Multi-angle AI vision detects nearby vehicles, cyclists, and pedestrians across four zones: rear, left-rear, right-rear, and forward approach. Purpose-built for large vehicles during lane changes and turns. Field-proven on excavator fleets in Saudi Arabia for heavy-equipment safety.

V2 Platform — FOTA & Unified Management

V2 upgrade delivers four gains: faster AI response reducing accident risk, simplified installation accelerating deployment, FOTA zero-downtime updates eliminating on-site maintenance, and a unified Configurator + FOTA Web platform managing all devices from one console — lowering complexity at fleet scale.

All-Region Connectivity & Multi-GNSS

4G LTE CAT.4 with three regional band sets: 8 bands for North America (B2/B4/B5/B12/B13/B14/B66/B71), 10 bands for EU & Asia (B1/B3/B5/B7/B8/B20/B28/B38/B40/B41), and 10 bands for Australia. Concurrent GPS, Galileo, BeiDou, and GLONASS positioning. Optional LoRa at 868MHz/915MHz extends auxiliary sensor connectivity.

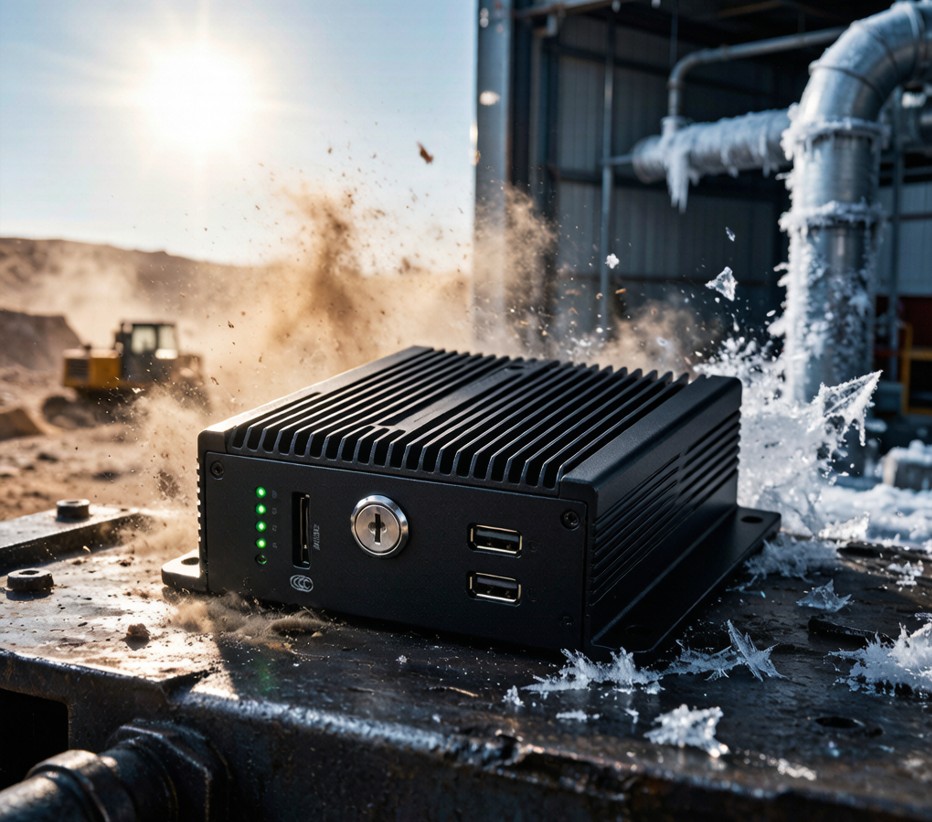

Rugged Fleet-Grade Hardware

9–36V input with supercapacitor — no battery degradation, safe shutdown on power loss. 3-axis G-sensor triggers overspeed, harsh braking, harsh acceleration, and harsh turning alerts. -30°C to +80°C operating range. Compact 161×124.8×41 mm, 558 g. Dual RS485, 12 I/O signals, 1-Wire sensor expansion.

Technical Datasheet

AI Platform

Linux OS, 2.0 TOPS NPU, ADAS/DMS/BSD algorithms, alert language: English (supports customization)

Video Recording

4-channel simultaneous at 1080P/720P; H.264/H.265 encoding; G.711A audio; 5-channel audio input (AV3, AV4, MIC, ADAS, DMS); 8Ω/2W speaker output

Storage

Dual SD card slots, 32GB to 512GB each, Class 10 or above

ADAS Functions

FCW (Forward Collision), HMW (Headway Monitoring), LDW (Lane Departure), PCW (Pedestrian Collision)

DMS Functions

Tired alert (eye closure, yawning), phone call, smoking, distracted driving, seat belt, infrared blocking/sunglasses, camera blocked, no driver detected

BSD Functions

Rear approach, left-rear approach, right-rear approach, forward approach; multi-angle AI vision for large vehicles during lane changes and turns

G-Sensor Alerts

Overspeed, harsh braking, harsh acceleration, harsh turning, collision warning; 3-axis G-Sensor

Cellular Connectivity

2G/3G/4G LTE CAT.4; NA: B2/B4/B5/B12/B13/B14/B66/B71; EU&Asia: B1/B3/B5/B7/B8/B20/B28/B38/B40/B41; AU: B1/B2/B3/B4/B5/B7/B8/B28/B66/B40

Positioning

GPS, Galileo, BeiDou, GLONASS concurrent; LoRa optional (868MHz/915MHz)

Power

9–36V DC input; 1041mA working, 19.5mA standby at 12V (with 4 external cameras); supercapacitor (no battery)

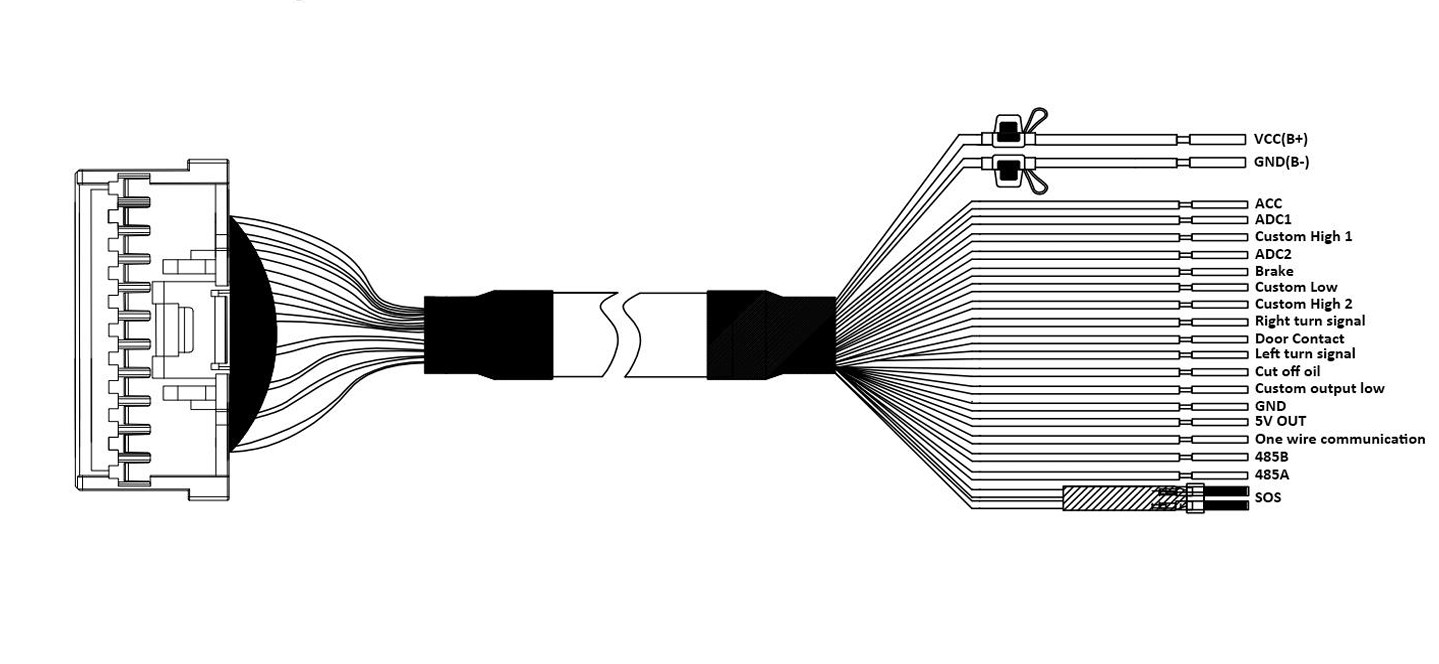

I/O Interfaces

Inputs: V+, ACC, SOS, ADC1, ADC2, Left-turn/DIN_H1, Right-turn/DIN_H2, DIN_L1, GND, 1-WIRE-Data, Brake, Door sensors; Outputs: 5V OUTPUT, Custom output low, Fuel-; RS485: RS485A, RS485B, GND, 5V OUTPUT

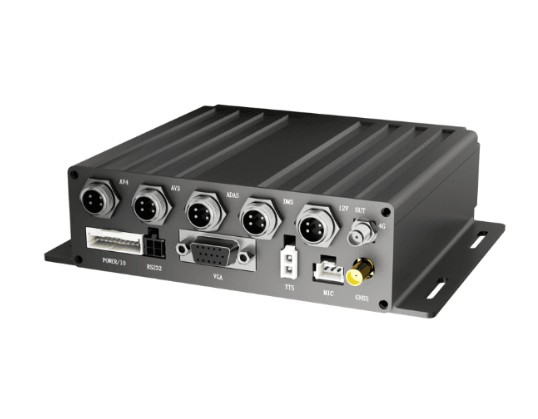

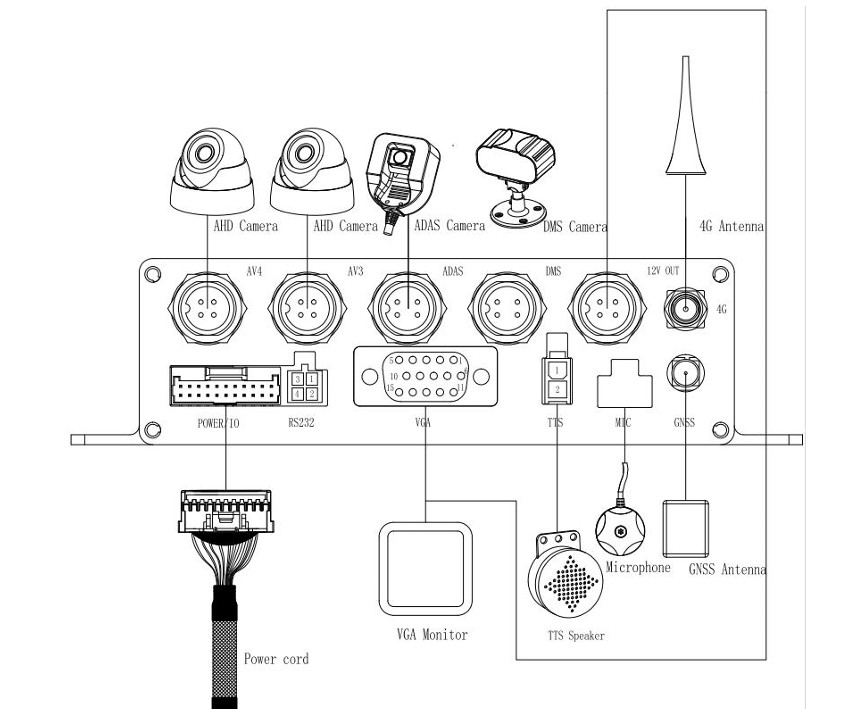

Device Interfaces

Nano SIM, Power connector, Type-C debug, 2×SD card, 2×AHD camera, ADAS camera, DMS camera, RS232, TTS speaker, MIC, VGA & 12V out, 4G antenna, GNSS antenna

Remote Management

Configurator (local/remote parameter configuration), FOTA Web (zero-downtime remote firmware upgrade); unified platform manages GPS trackers, dash cams, and MDVRs

LED Indicators

Red (online), Yellow (positioning), Green (storage), Blue (working)

Dimensions & Weight

L161 × W124.8 × H41 mm, 558 g

Operating Environment

-30°C to +80°C operating, -40°C to +85°C storage
