Dash Cams & DVRs / 4G AI Dash Cam KM-DM03
Dash Cams & DVRs

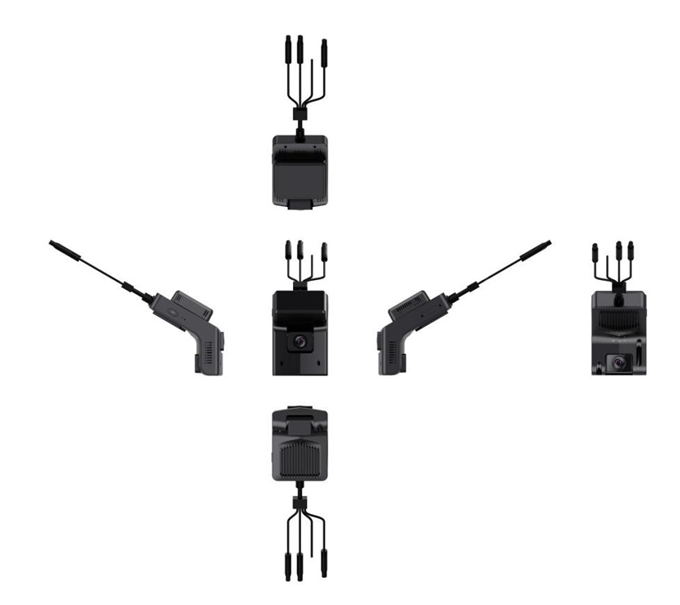

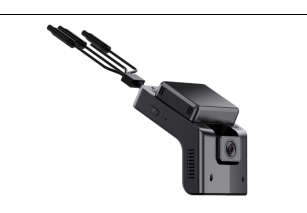

4G AI Dash Cam KM-DM03

Dual 1080P AI Dash Cam: 4G Cloud Fleet Management & Driver Safety Monitoring

4G AI Dash Cam KM-DM03
4G AI Dash Cam KM-DM03
4G AI Dash Cam KM-DM03
4G AI Dash Cam KM-DM03

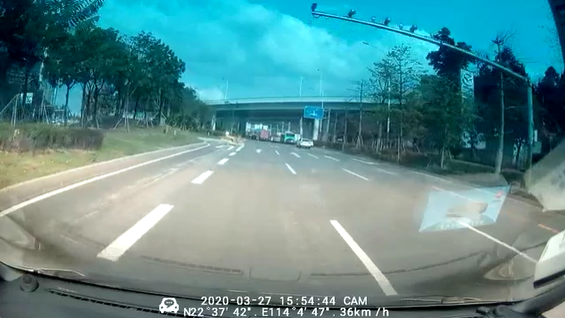

HD Dual-Channel Recording & FMS Cloud Integration

Continuous 1080P front and cabin recording captures every trip in high definition, while 4G LTE streams live video to the FMS platform on demand. Fleet managers access real-time monitoring, historical playback, and vehicle tracking in a single web-based interface without retrieving physical media. This unified pipeline compresses incident investigation time.

HD Dual-Channel Recording & FMS Cloud Integration

ADAS — External Threat Detection

The Advanced Driver Assistance System issues real-time in-cab alerts for lane departure, forward collision risk, pedestrian proximity, and unsafe following distance — the most common precursors to fleet collisions. Voice warnings correct driver behavior at the moment of risk, while event-triggered footage is auto-locked and uploaded to the cloud.

ADAS — External Threat Detection

DSM — In-Cabin Driver Monitoring

AI-powered driver status monitoring detects fatigue, smoking, phone use, distraction, and other unsafe behaviors from inside the cabin, issuing real-time alerts to refocus the driver. The DSM layer addresses the root cause behind most fleet collisions — driver inattention and impairment — reducing distraction-related events within the first quarter.

DSM — In-Cabin Driver Monitoring

Emergency SOS & G-Sensor Event Lock

A one-touch SOS button instantly uploads emergency video and photos to a predefined contact. The built-in G-sensor independently detects collisions and sudden impacts, automatically locking and uploading surrounding footage before it can be overwritten. This dual-path evidence protection accelerates emergency response and preserves chain of custody.

Emergency SOS & G-Sensor Event Lock

Wi-Fi Hotspot & Mobile App Control

A built-in Wi-Fi hotspot enables zero-flow video preview, playback, and full device configuration through the mobile app — no cellular data consumed for routine checks. Fleet technicians can align cameras, update settings, and verify recording status on-site, eliminating cellular costs for daily device management across large deployments.

Wi-Fi Hotspot & Mobile App Control

Technical Datasheet

Camera Configuration
Dual-channel 1080P front and cabin recording, simultaneous continuous capture
Cellular Connectivity
4G LTE, supports major carriers globally
Positioning
GPS + Beidou dual-mode, real-time location and speed tracking
Wi-Fi
Built-in Wi-Fi hotspot, zero-flow video preview and device configuration via mobile app
Local Storage
microSD (TF) card support up to 512GB
Power Input
Wide voltage 9–36V DC, compatible with commercial vehicle electrical systems, video integrity protection on power loss
ADAS
Lane departure warning, forward collision warning, pedestrian collision warning, unsafe following distance
DSM
Fatigue detection, smoking detection, phone use detection, distraction detection, other unsafe behavior
Emergency
One-touch SOS button, instant photo/video upload to predefined contact; G-sensor auto-lock on collision or sudden impact
Cloud Platform
FMS platform integration for real-time monitoring, historical playback, video report viewer, fleet management
