4G Motorcycle GPS Tracker KM-TB22
IP67 Hardened 4G Cat.1 GPS Tracker with Multi-GNSS, 10μA Deep Sleep & Driving Behavior Analysis
IP67 Hardened 4G Cat.1 GPS Tracker with Multi-GNSS, 10μA Deep Sleep & Driving Behavior Analysis
Three operating modes: Normal tracking, Online Sleep, and Offline Deep Sleep. Offline deep sleep draws 10μA — near zero drain. Online sleep at 3.8mA maintains network connection and wakes on motion. Active tracking at 11.6mA. Motion-triggered tracking. Built-in 3.7V/55mAh lithium backup battery rated over 2 years.

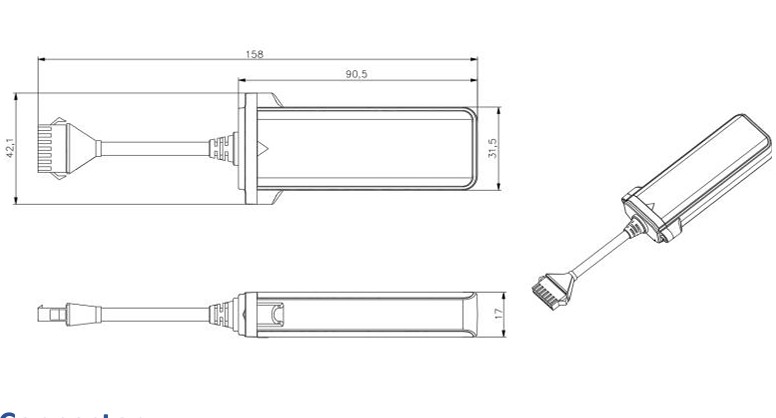

IP67 rated: fully sealed against dust ingress, protected against immersion up to 1 meter for 30 minutes. Shock-resistant enclosure. Operating temperature -20°C to +75°C, storage -40°C to +85°C, under 95% humidity. Compact 158×42×17 mm at 51 g. LED indicators: yellow for GPS positioning, red for cellular communication.
Simultaneously tracks GPS, Galileo, BeiDou, and GLONASS. Tracking sensitivity -165dB, acquisition -159dB. Positioning accuracy within 2 meters CEP. Hot start < 1s, cold start < 24s. Two 4G Cat.1 band variants: STD (B1/B2/B3/B5/B7/B8/B20/B28/B66/B38/B41) and NA (B2/B5/B12/B17/B13/B66/B38/B41). Dual IP support.
Nine alarm types: vibration detection, position change, external power cut, low battery voltage, overspeed, harsh braking, harsh acceleration, harsh cornering, and collision detection. Alerts via SMS and app notification. Alarm functions work in weak signal areas. Remote fuel-pump and ignition cut-off for anti-theft.
Collision detection covers rollover, harsh braking, harsh acceleration, and cornering events. AI-powered driver scorecard for risk assessment. Configurable overspeed thresholds. Supports geofencing and trip replay. Compatible with fleet management platforms including Geotab and Samsara.

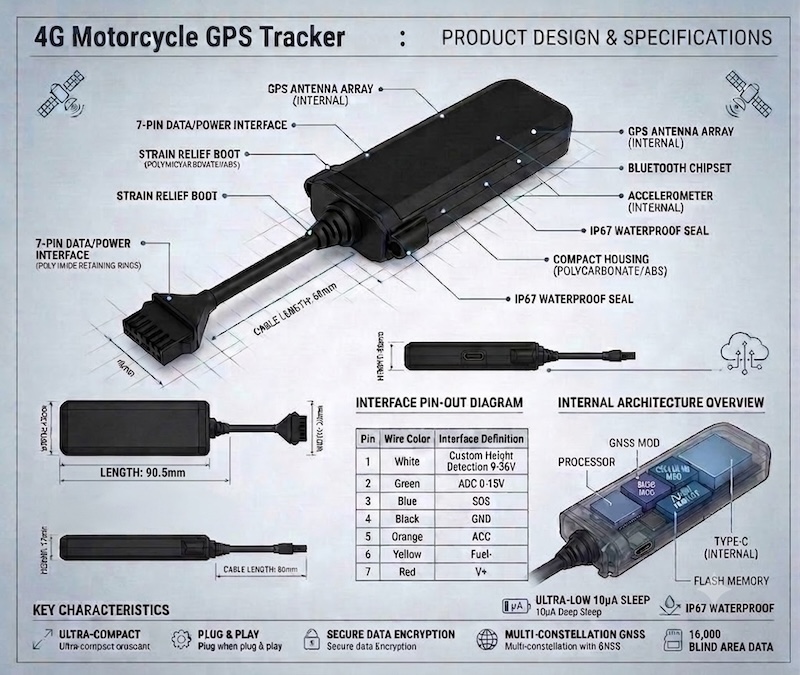

Wide 9–90V DC input range suits 12V, 24V, 48V, and 72V electrical systems. 7-pin female connector: V+, GND, ADC, Fuel relay, SOS, ACC, height detection 9-36V. Nano-SIM card slot. Wired installation suitable for motorcycles, cars, e-bikes, and construction vehicles.
16,000 records across dual IP channels for data buffering when outside cellular coverage. Supports cross-border tracking. Alarm functions continue to work in areas with weak or no signal. SMS-based configuration, position query, and interval adjustment.
