Vehicle Trackers / GPS Vehicle Tracker KM-B5
Vehicle Trackers

GPS Vehicle Tracker KM-B5

High-performance GPS Vehicle Tracker with Remote Immobilization & Anti-theft Security

GPS Vehicle Tracker KM-B5

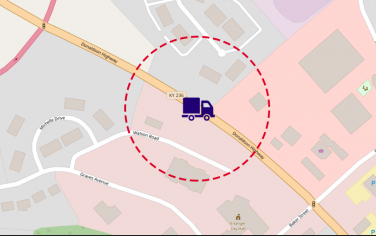

Real-Time Tracking & Smart Geo-Fencing

Internal high-gain GNSS and GSM antennas deliver accurate, always-on positioning with real-time updates accessible from the FMS platform. Define custom geo-fence zones and receive instant alerts when a vehicle enters or exits. Continuous location awareness enables operators to verify service arrivals and detect unauthorized zone departures within seconds.

Real-Time Tracking & Smart Geo-Fencing

Remote Engine Immobilization

When theft or unauthorized use is detected, fleet managers remotely lock the engine via the FMS platform — preventing further movement before the asset is lost. The command executes over the cellular network and can be triggered manually or as an automatic response to geo-fence breaches, shrinking the window between detection and protection.

Remote Engine Immobilization

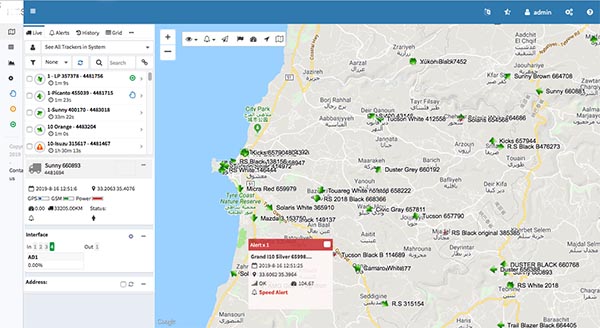

Engine Runtime Analytics & Intelligent Data Savings

Monitor engine operating hours in real time to identify underutilized assets, excessive idling, and inefficient vehicle allocation. GPRS data management automatically pauses uploads when the vehicle is stationary, eliminating unnecessary cellular traffic. Together, these efficiency features lower total cost of ownership without sacrificing tracking fidelity.

Engine Runtime Analytics & Intelligent Data Savings

Battery Monitoring & One-Touch SOS

Real-time battery voltage monitoring triggers automatic low-voltage and power-loss notifications before a dead battery causes unexpected downtime. In emergencies, the optional one-touch SOS button instantly alerts up to three preset contacts with the vehicle's current location, keeping assets operational and drivers connected to help.

Battery Monitoring & One-Touch SOS

Remote Voice Monitoring

An external microphone with automatic call answering enables fleet managers to listen in on the vehicle's interior in real time without driver action. When a theft alert, SOS activation, or critical event fires, operators assess the situation through live audio before dispatching a response — transforming the tracker into an active surveillance tool.

Remote Voice Monitoring

Technical Datasheet

SIM Interface
Micro-SIM
Antennas
Internal high-gain GNSS antenna, internal high-gain GSM cellular antenna
Digital I/O
4 digital inputs, 1 digital output
Memory
8 MB internal flash memory
Sensors
Built-in accelerometer; external power voltage detection
Detection Scenarios
Overspeeding, jamming, unplug, towing, crash, geo-fence entry/exit, trip start/end, ignition on/off
Remote Control
Remote engine shutdown via platform, automatic response on geo-fence or alarm trigger
Voice Monitoring
External microphone support, automatic call answering for real-time remote audio surveillance
Power Intelligence
Real-time battery voltage monitoring, low-voltage and power-loss alerts
Data Efficiency
GPRS upload auto-pause when vehicle stationary, configurable update intervals
SOS
One-touch SOS alert (optional)
Sleep Mode
OnlineSleep Normal, GPRS configuration commands
Time Synchronization
GNSS and server-based
LED Indication
2 status LED lights
Quality Control
10-step QC: switch, misuse, fault-tolerant, power jitter, storage, aging, temperature extreme, vibration, ripple, voltage drop testing
Cloud Platform
FMS GPS tracking software integration, real-time monitoring, playback, reports
